Heavy Duty Conveyors & Transfer (Minimize TCO)

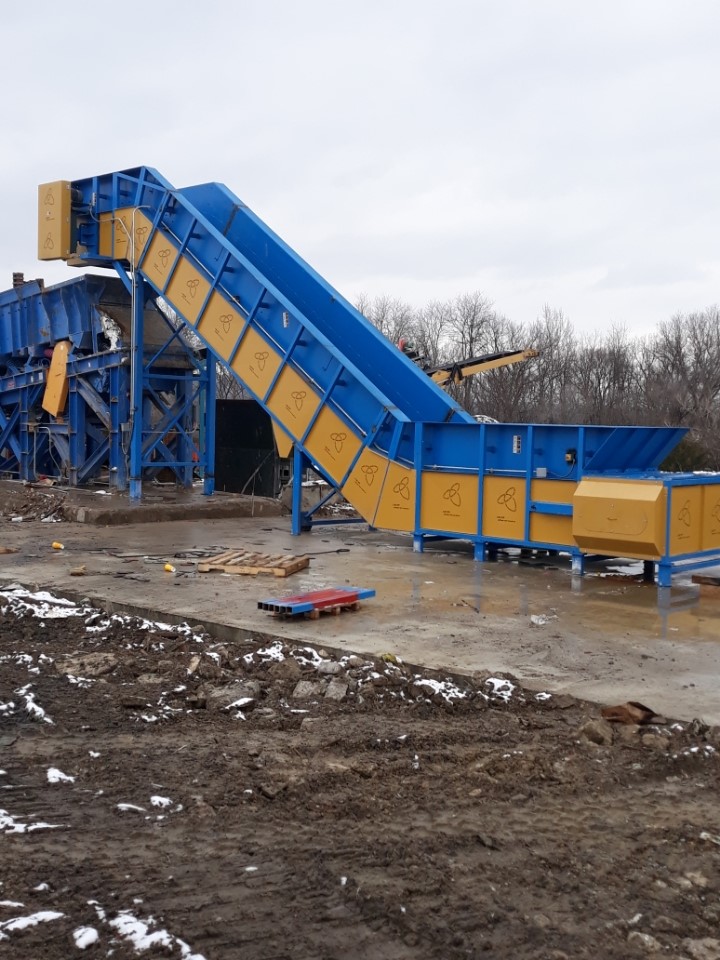

Apron Conveyor

Steel pans for heavy, sharp recyclables like rubble and scrap metal.

Max Capacity

Up to 1,000 TPH

Pan Thickness:

1/4–1/2 in

Chain Pitch

6–9 in

Use Case:

C&D Infeed, Scrap Metal, MSW Ramps

Drag Chain Conveyor

Moves heavy, abrasive materials reliably using chain and AR400/UHMW liners.

Max Capacity

Up to 800 TPH

Liners:

AR400 or UHMW

Incline Angle

Up to 45°

Use Case:

C&D Transfer, Glass Cullet, Heavy MSW Loads

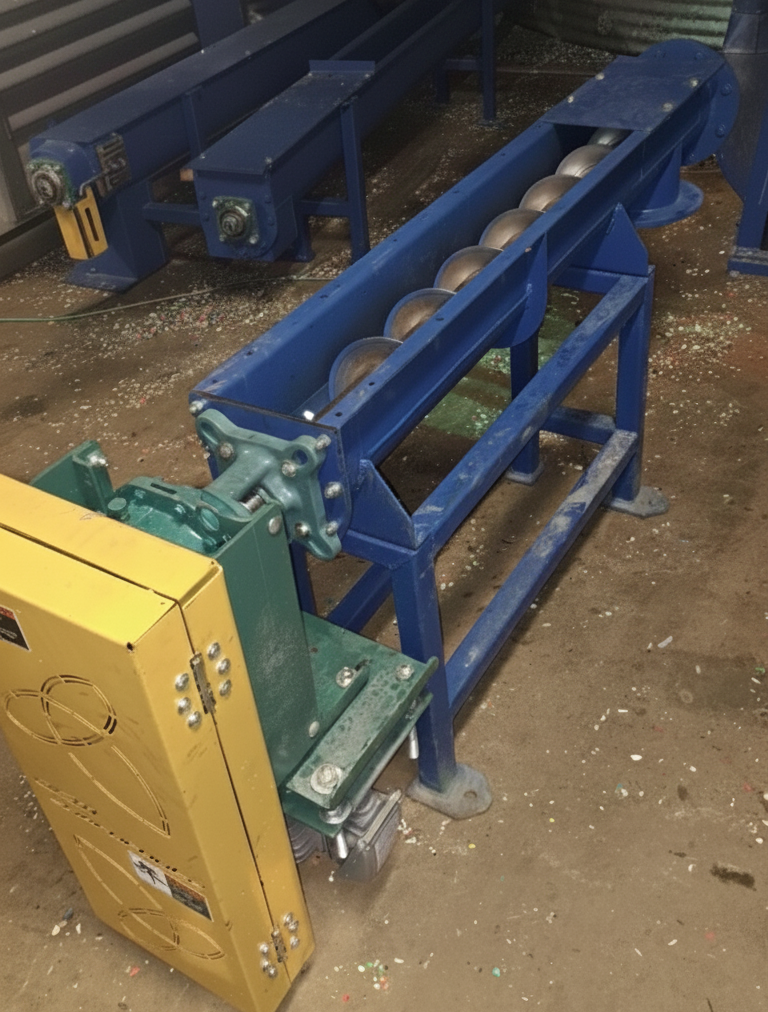

Screw Conveyor

Lifts and meters fines, biomass, and RDF in a compact, contained footprint.

Capacity

5–250 TPH

Screw Diameter

6" to 24"

Incline

0–45°

Use Case:

Glass Fines, Compost Transfer, RDF Dosing

Bin Conveyor

Custom systems for integrated material separation and storage.

Function

Regulated Feed

Drive

Variable Speed (VFD)

Capacity

Custom Cubic Capacity

Use Case:

Storage Transfer, Final Bale Feed

Tote Dumper

Moves heavy, abrasive materials reliably using chain and AR400/UHMW liners.

Max Capacity

Up to 800 TPH

Liners:

AR400 or UHMW

Incline Angle

Up to 45°

Use Case:

C&D Transfer, Glass Cullet, Heavy MSW Loads

Gravity Bin (Surge Storage)

Provides surge storage and smooth, metered feed for downstream conveyors.

Capacity:

1–60 yd³

Wall Angle:

55–70°

Outlet:

12–48 in

Use Case:

MRF Storage, Glass Buffer, Compost Holding

Screening & Separation Equipment

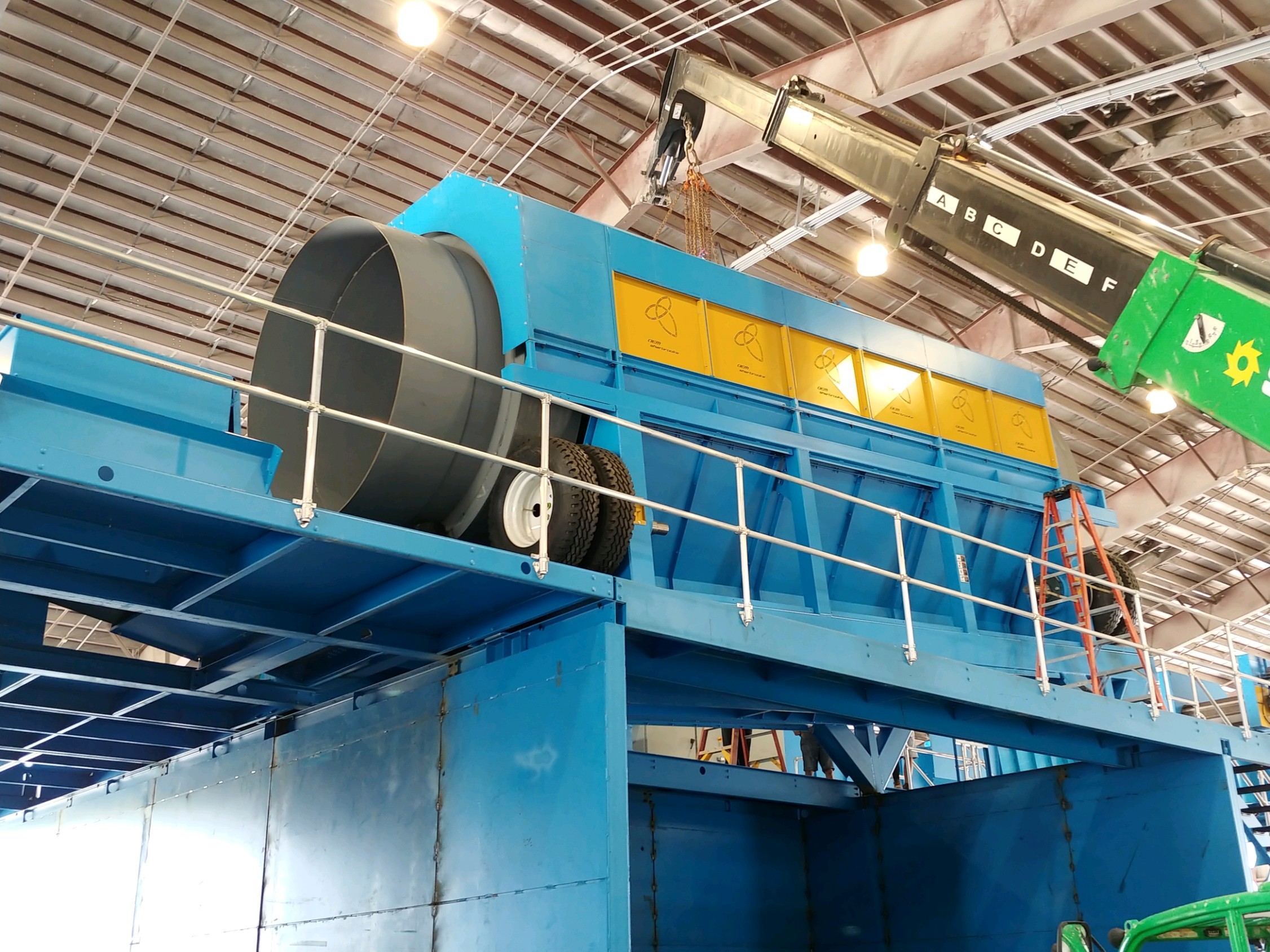

Trommel Screen

Separates material by size using rotating drums. Ideal for fines and compost.

Capacity:

20–120 TPH

Drum Diameter:

5–10 ft

Apertures:

3/8–4 in

Use Case:

MSW Fines, Glass Cleanup, Compost Screening

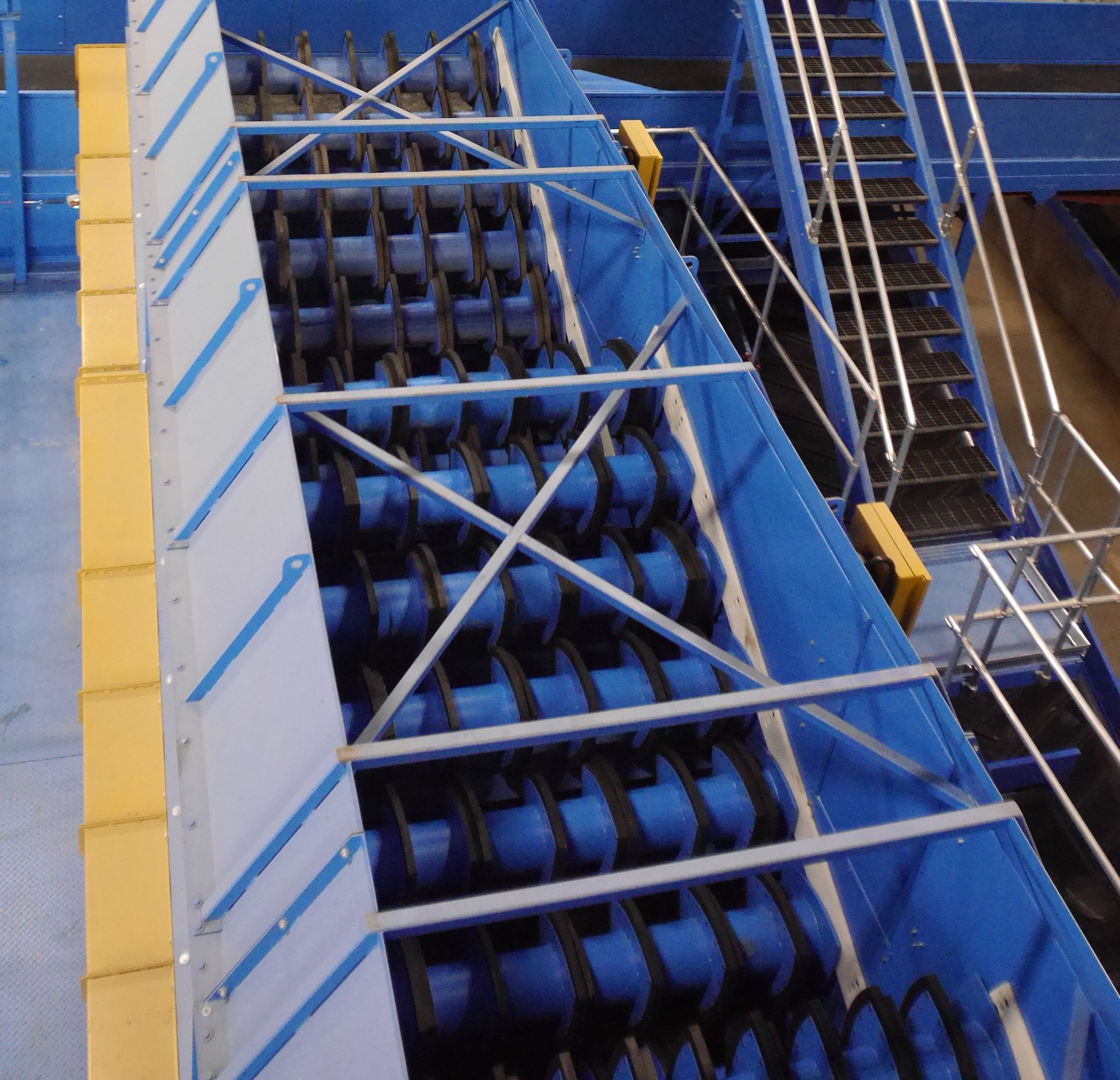

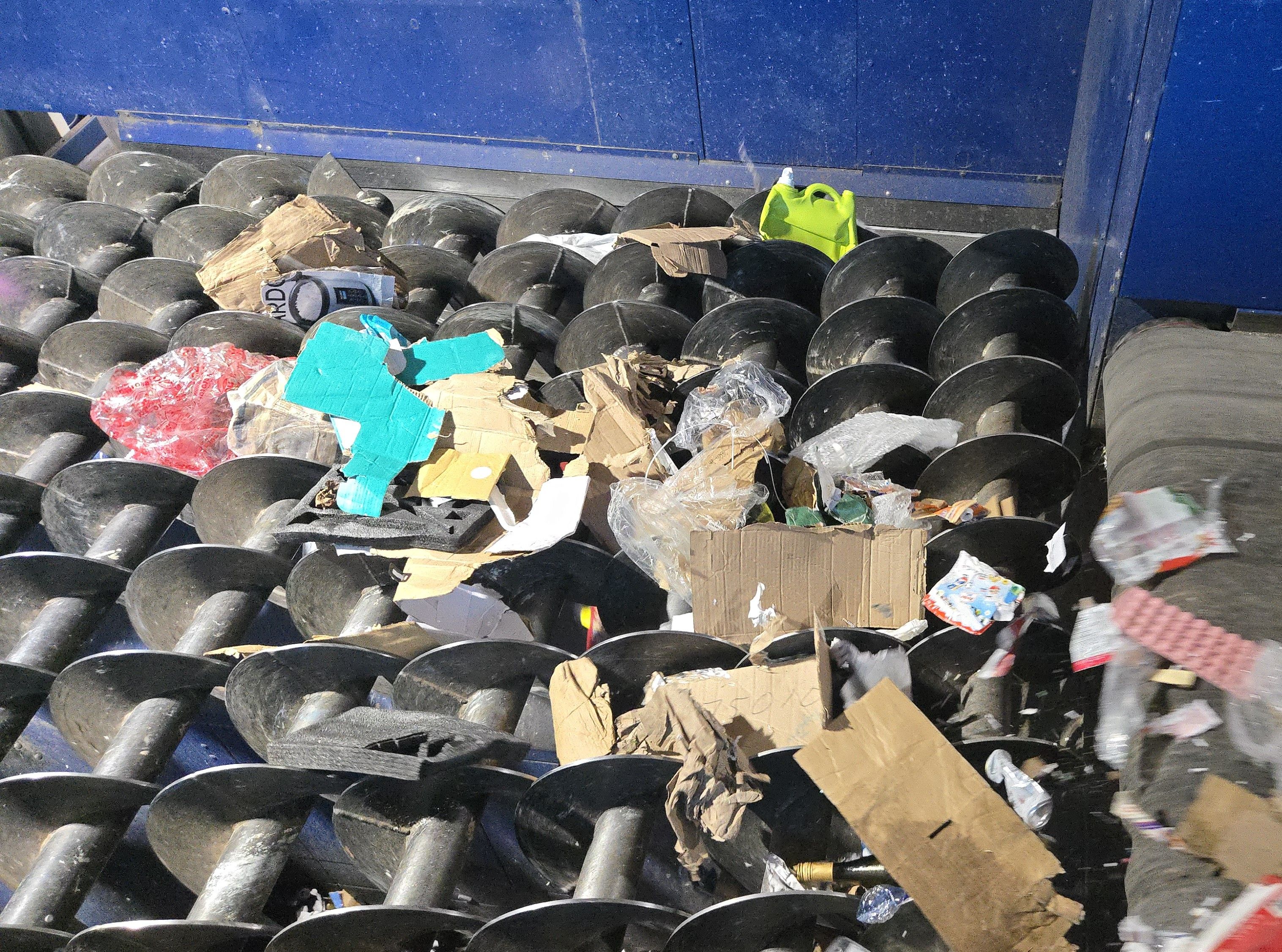

Auger Screen

Uses parallel screws to resist wrapping while separating overs from fines (plastic film, wood).

Capacity:

20–150 TPH

Cut Size:

2–8 in

Screw Diameter:

12–24 in

Use Case:

C&D Overs, Wood Waste, MSW Coarse

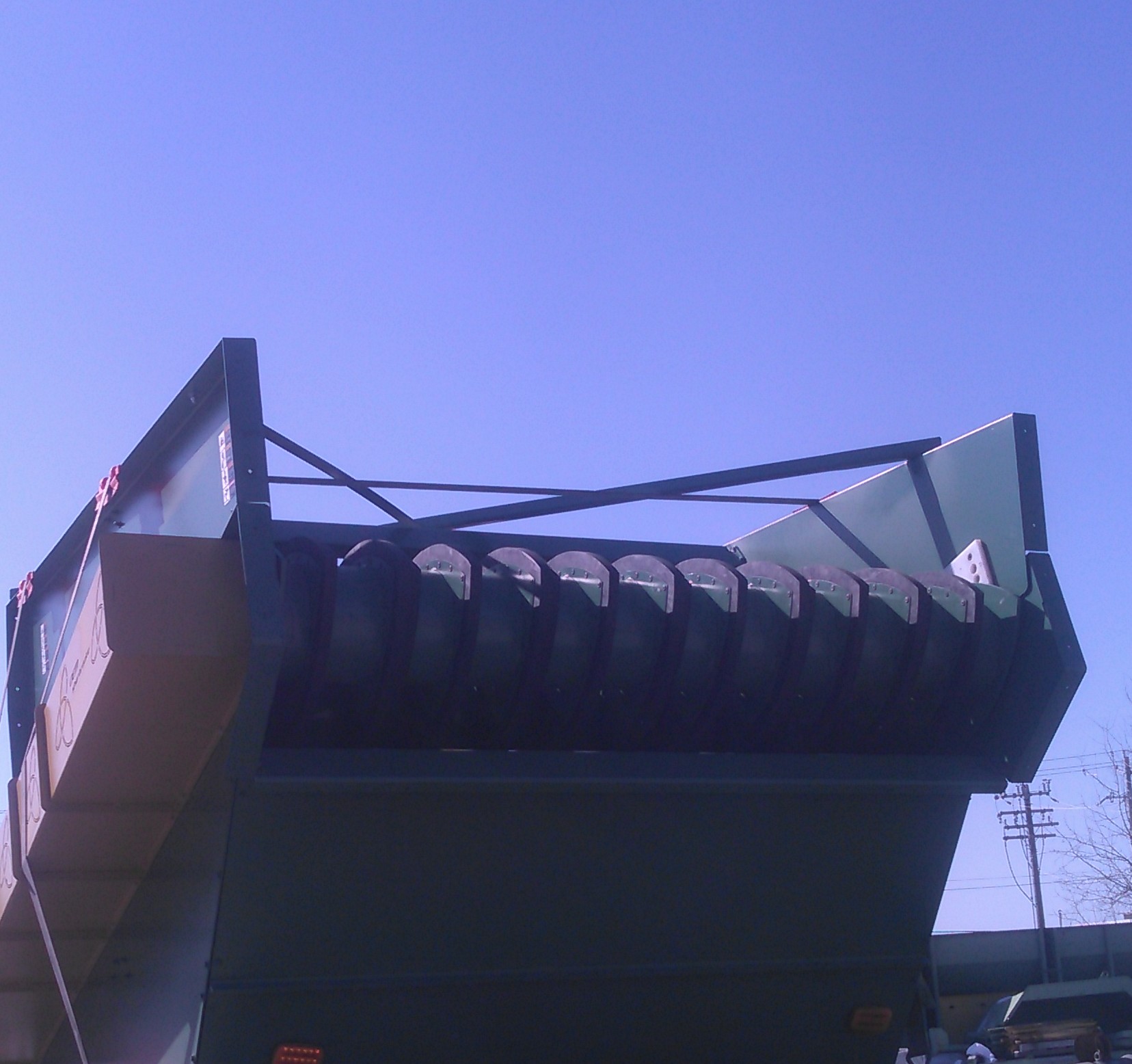

OCC Screen (Cardboard)

Separates Old Corrugated Cardboard from containers using adjustable disc spacing.

Capacity:

10–40 TPH

Deck Width:

47–98 in

Disc Spacing:

4–7 in

Use Case:

Commercial Cardboard, E-commerce Packaging

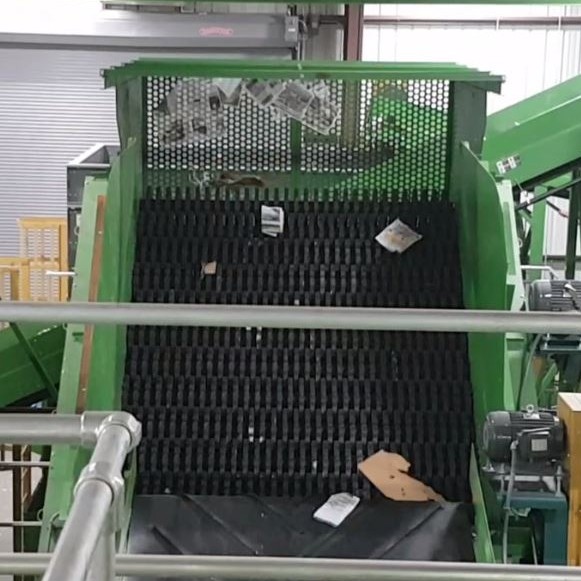

ONP Screen (Paper)

Separates newspapers and mixed paper from containers in high-speed recycling facilities.

Capacity:

8–30 TPH

Deck Width:

47–98 in

Disc Size:

8.7–15 in

Use Case:

Newsprint Recovery, Mixed Paper, SS Fiber Lines

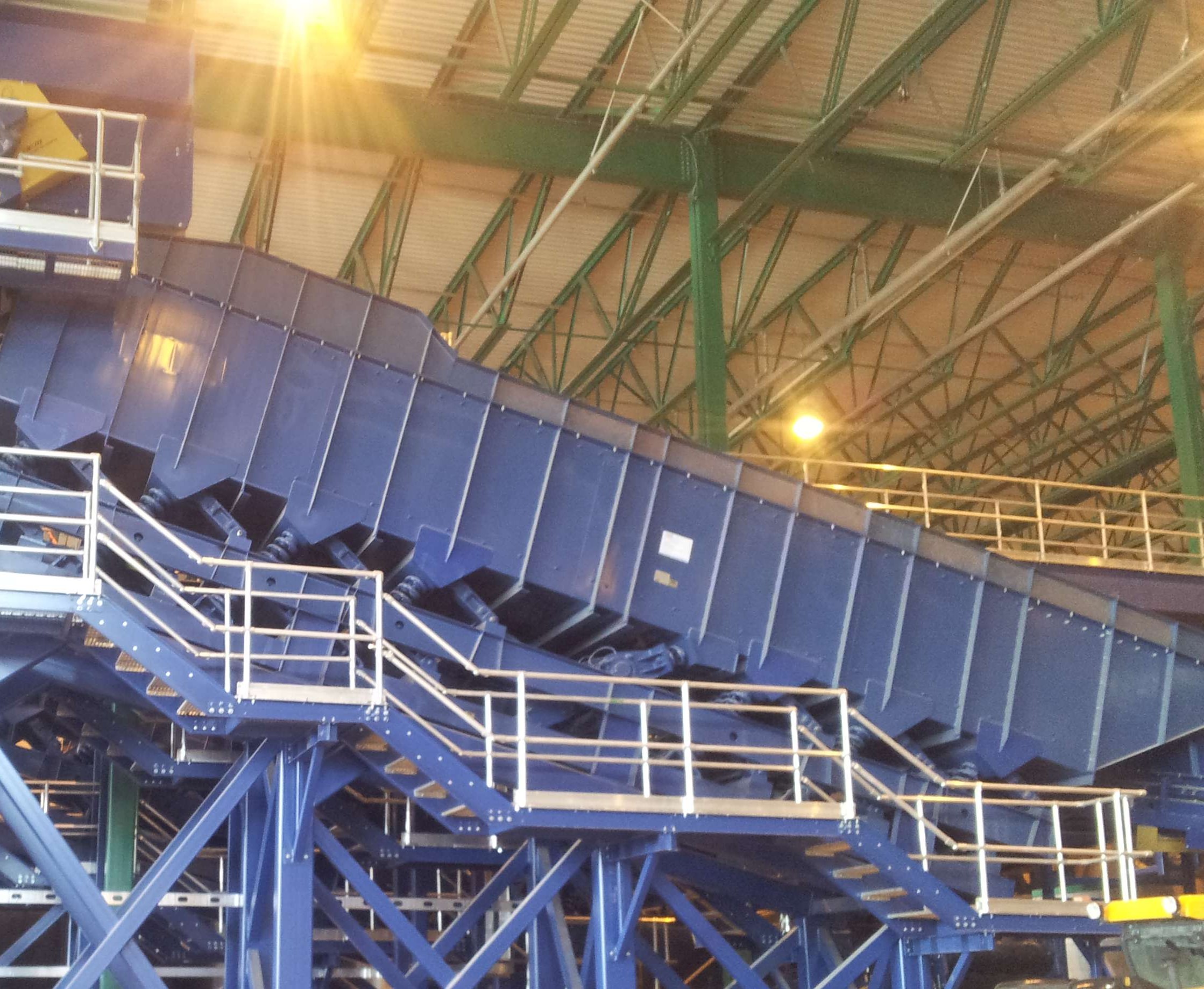

Vibra-Snap Screen

High-frequency vibrating screen for difficult, sticky, or very fine materials.

Frequency:

High (1800 RPM)

Target Material:

Sticky/Wet Fines

Motion:

Elliptical

Use Case:

MSW, Compost, Post-Shredder Fines

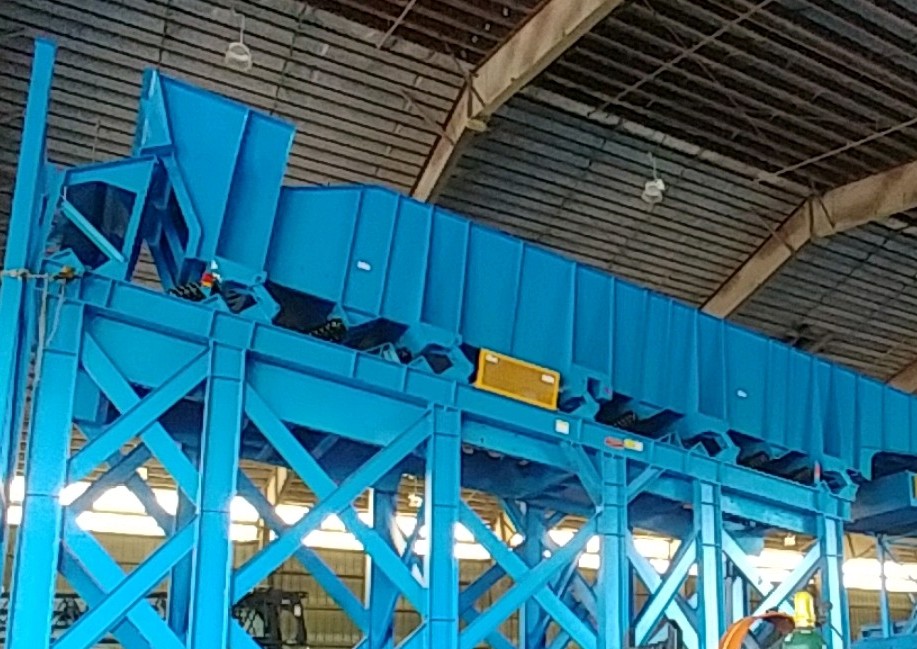

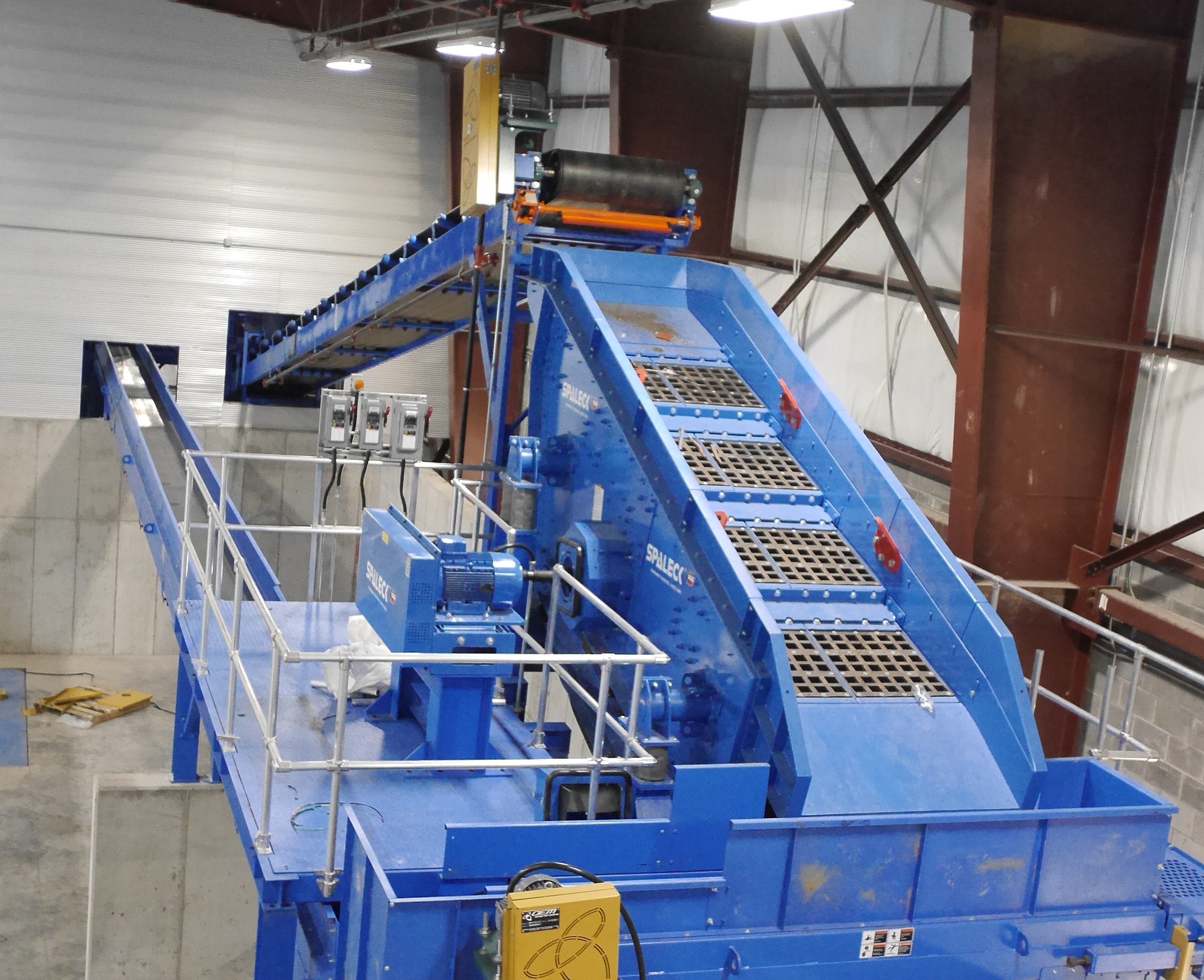

Finger Screen

Aggressive screening solution often used for primary sizing in C&D applications.

Fingers:

Manganese Steel

Angle:

Adjustable (15-25°)

Maintenance:

Low Wear & Tear

Use Case:

Primary C&D Sizing, High Flow

Belt, Flow & Magnetic Components

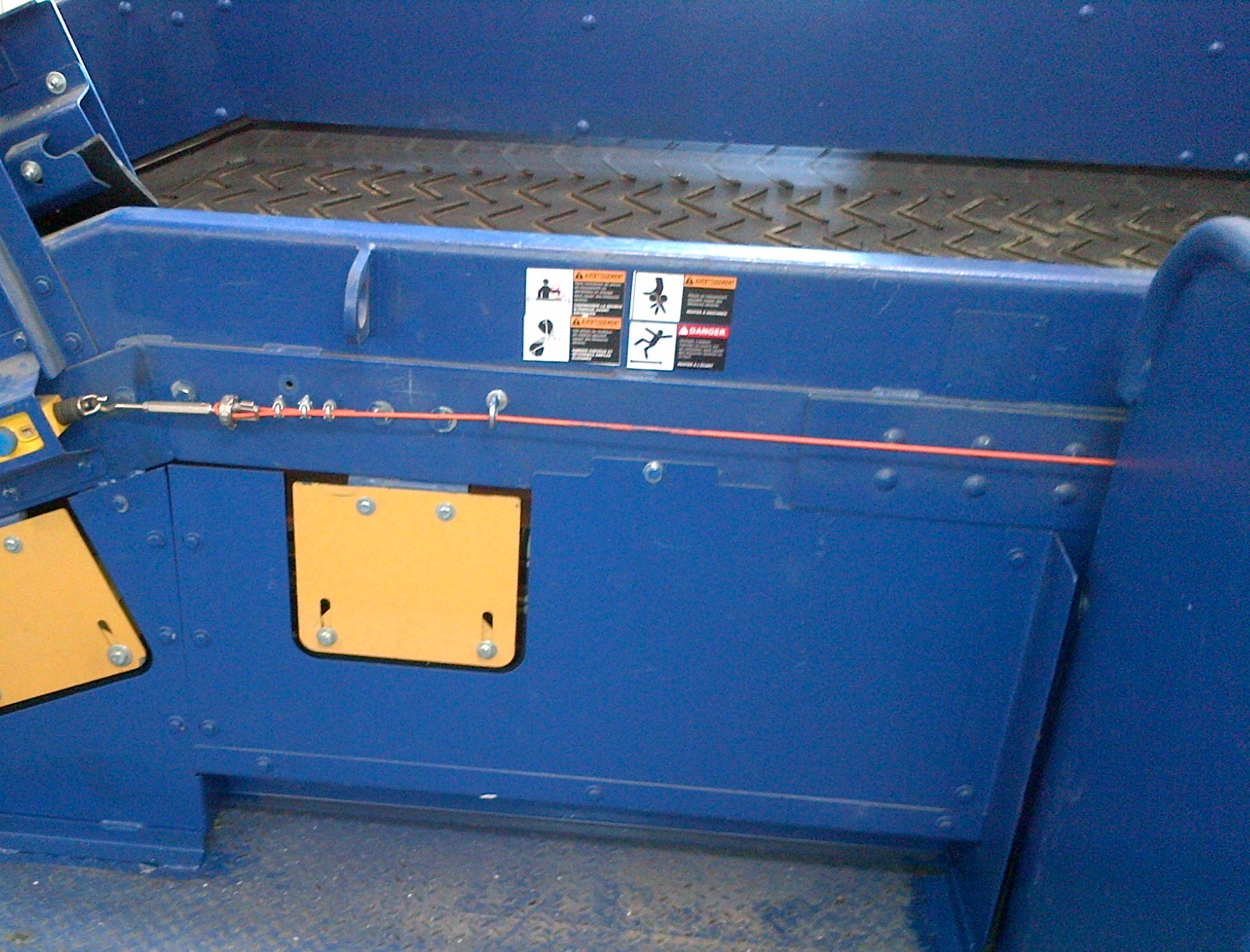

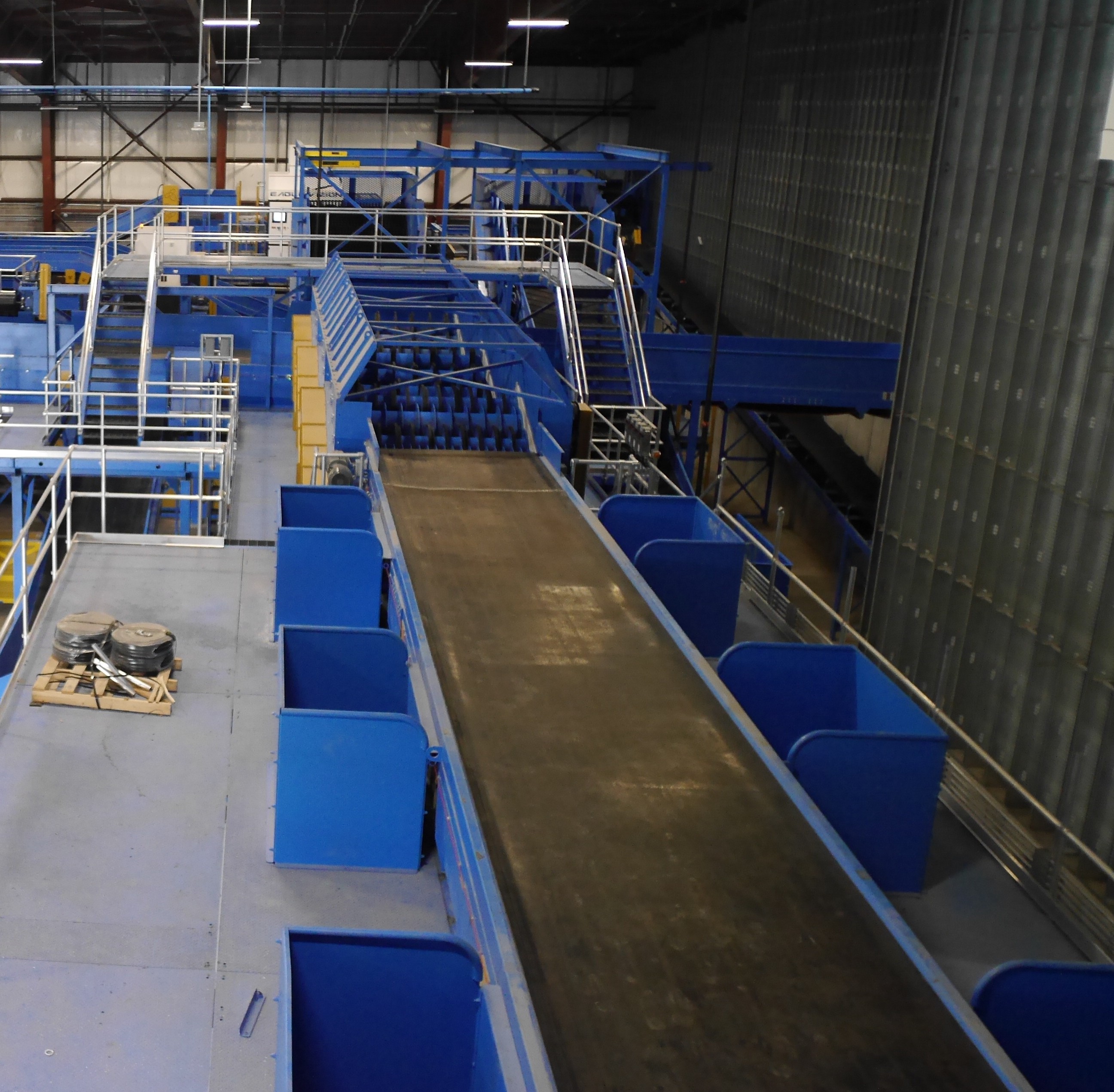

Picking Conveyor

Ergonomic manual sorting station with integrated safety features.

Belt Width:

24–96 in

Workstation Height:

36–44 in

Safety:

E-stops every 10 ft

Use Case:

Plastic Sorting, Glass Removal, Manual Picking Stations

SliderBed Conveyor

Provides stable and quiet transport for optical sorting feed and manual stations.

Capacity:

200 lbs/ft

Belt Width:

18–72 in

Speed:

30–300 fpm

Primary Use:

Optical Sorting Feed, Manual Stations

Eddy Current Separator

Essential for separating non-ferrous metals (aluminum) from the recycling stream.

Rotor Speed:

Up to 2,500 RPM

Belt Width:

40" to 80"

Function:

Non-Ferrous Recovery

Primary Use:

SS MRF, Metals Recycling

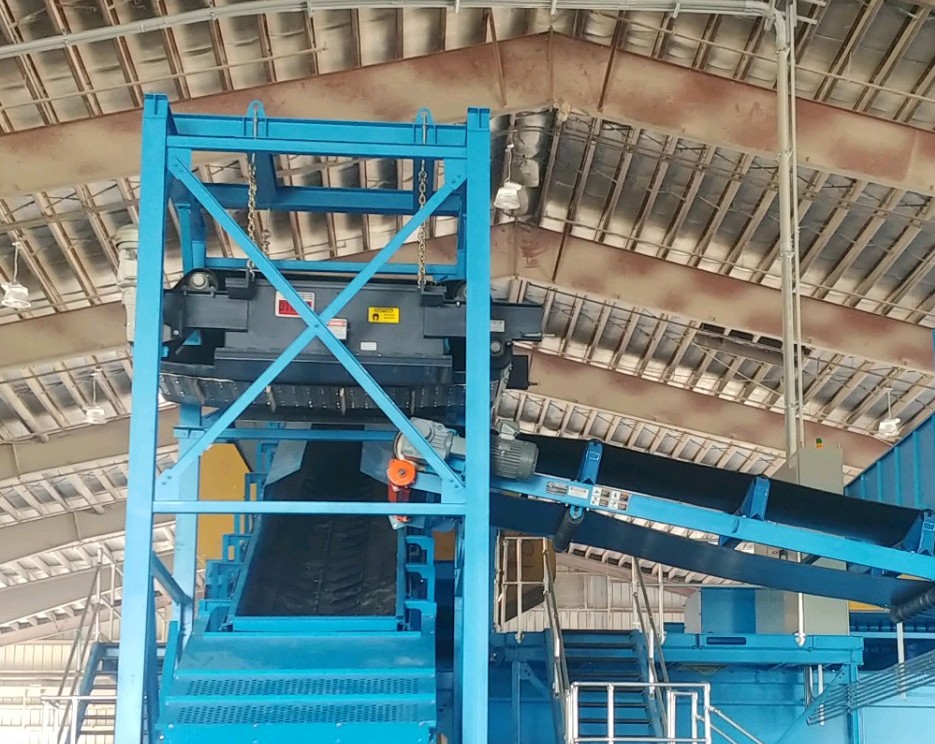

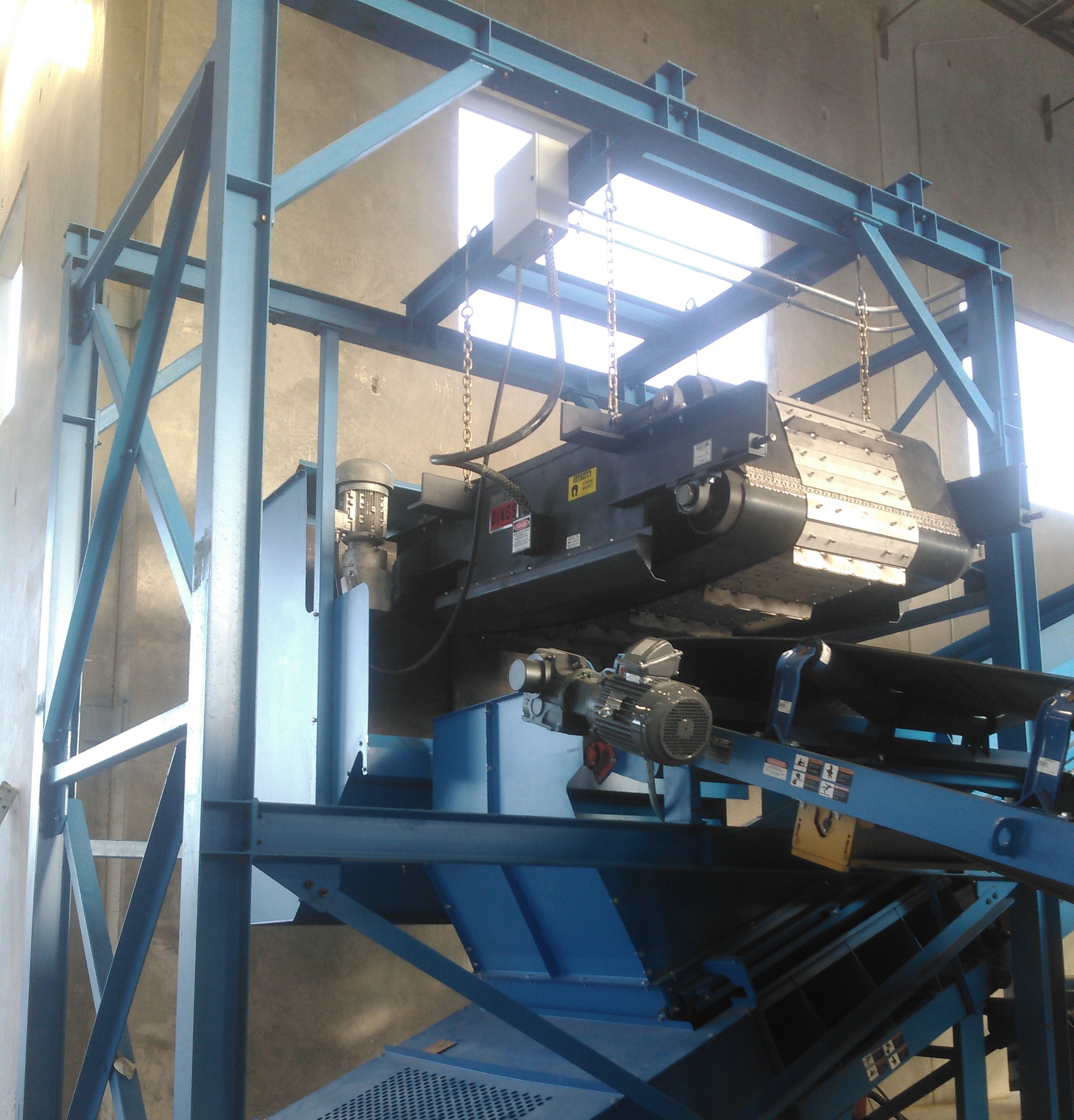

Overhead Electromagnet

Powerful solution for retrieving large ferrous metal contaminants from conveyed material.

Lift Height:

12" to 24"

Cooling:

Oil or Air

Function:

Ferrous Extraction

Primary Use:

C&D, MSW Primary Lines

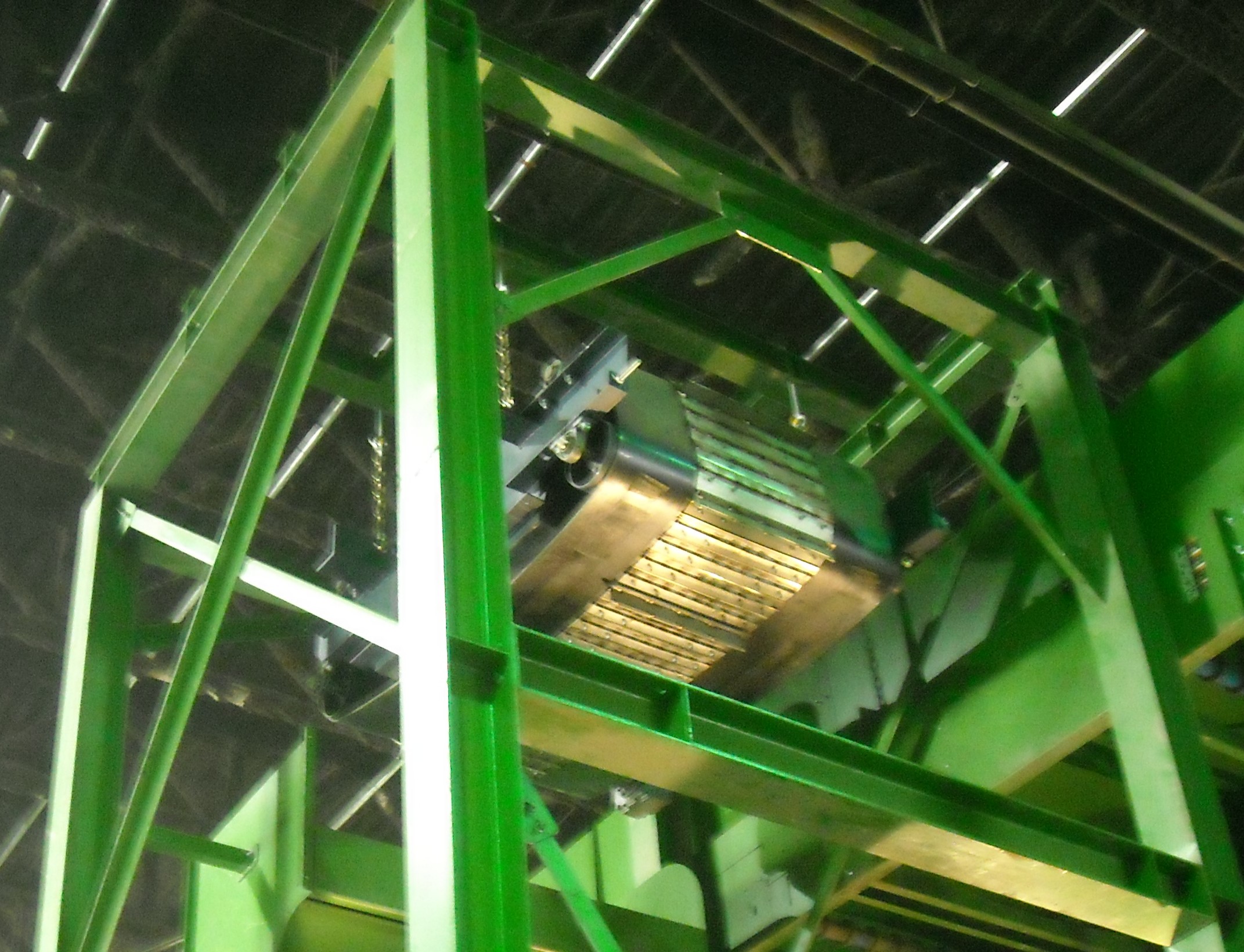

Permanent Overhead Magnet

Maintenance-free ferrous metal separator, ideal for lower speed/simpler lines.

Magnet Material

Ceramic or Rare Earth

Maintenance

Self-Cleaning (Optional)

Use Case

Light Industrial, QC Checks

Installation

Above Conveyor

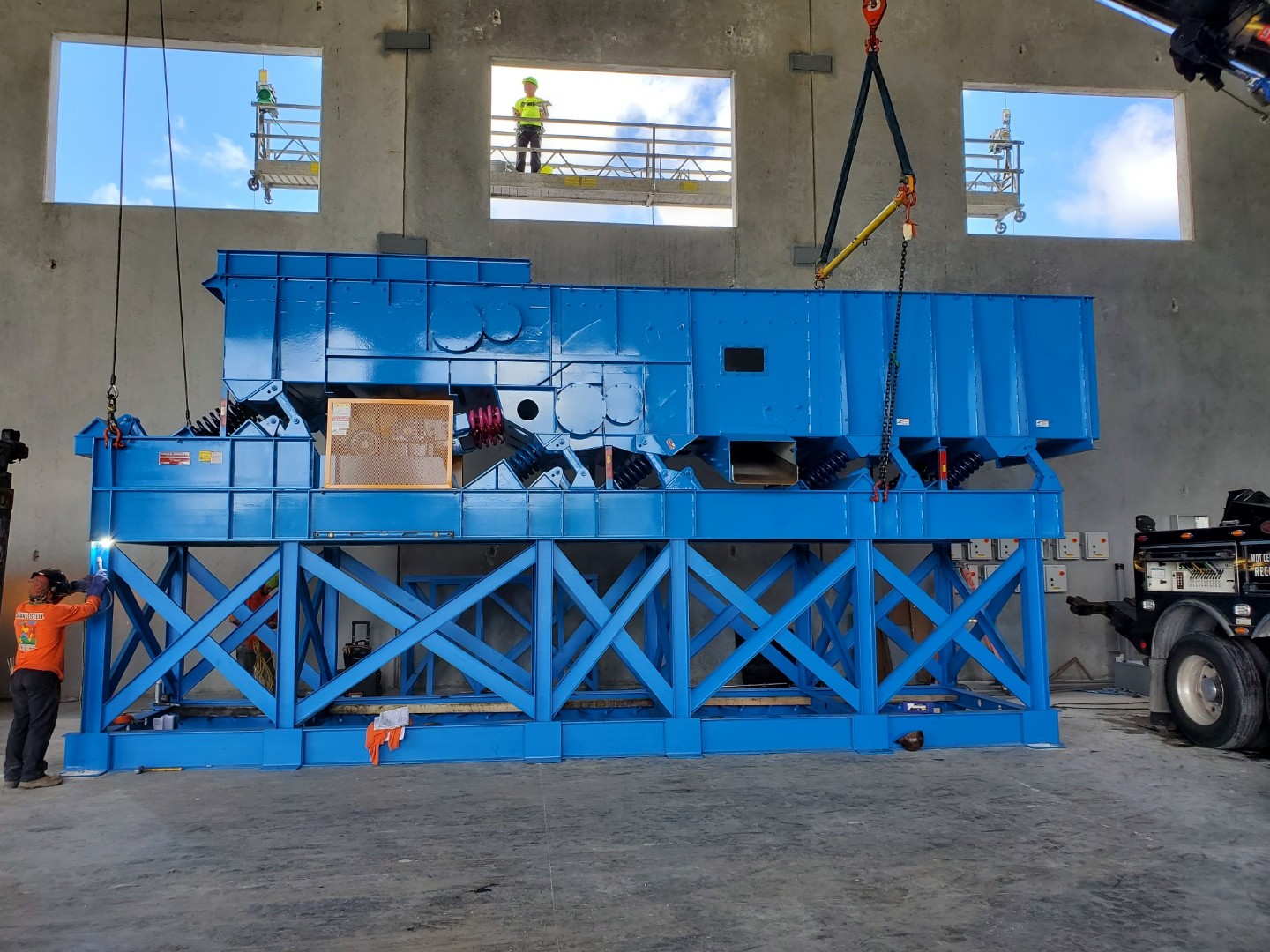

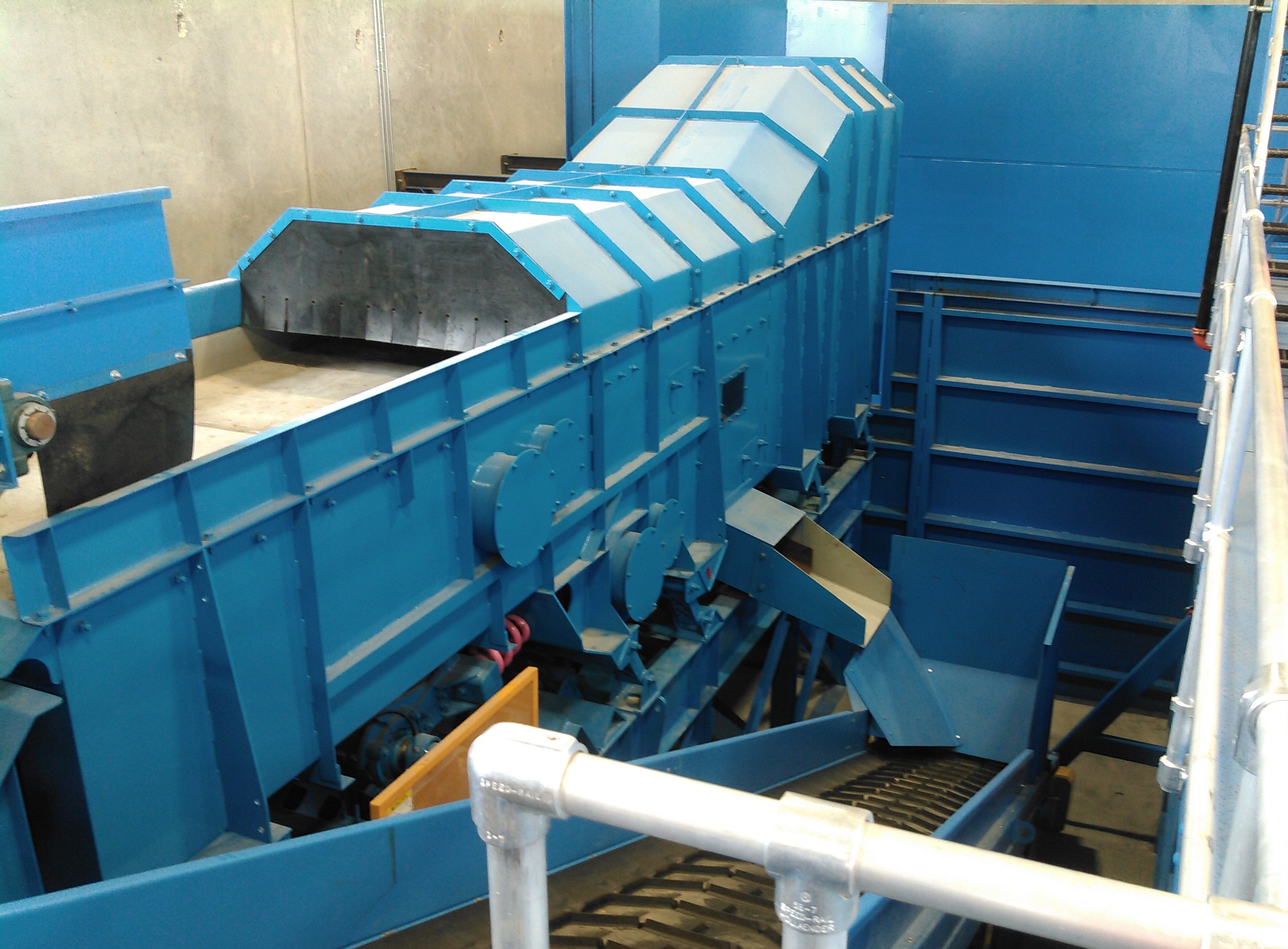

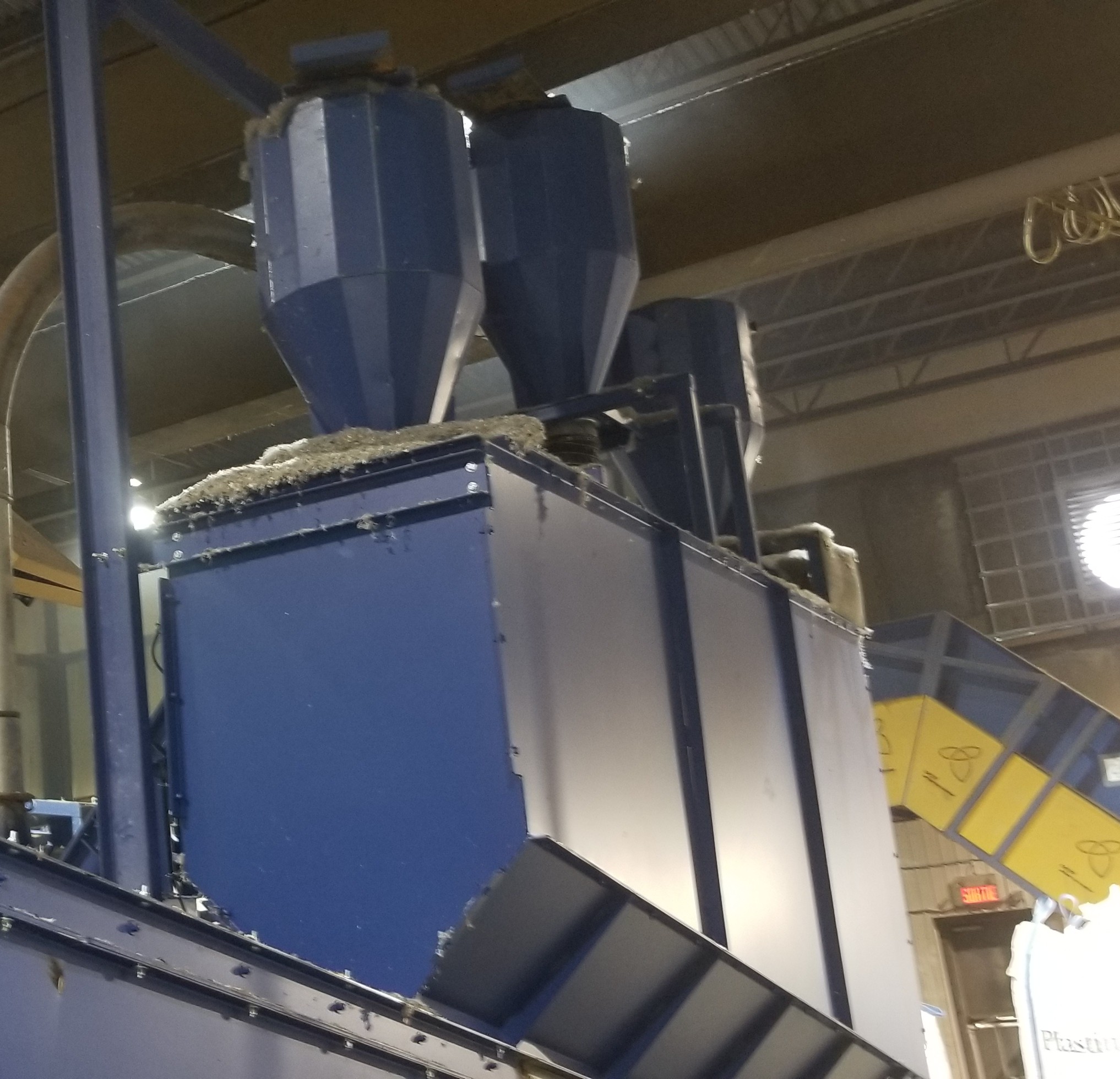

Destoner / Air Density Separator

Air-based separator to remove heavy impurities like stones and glass shards from lighter material flows.

Method:

Air Density Separation

Capacity:

10 to 30 TPH

Target:

Heavy Impurities (Stones)

Primary Use:

Post-Screening Fines Cleanup

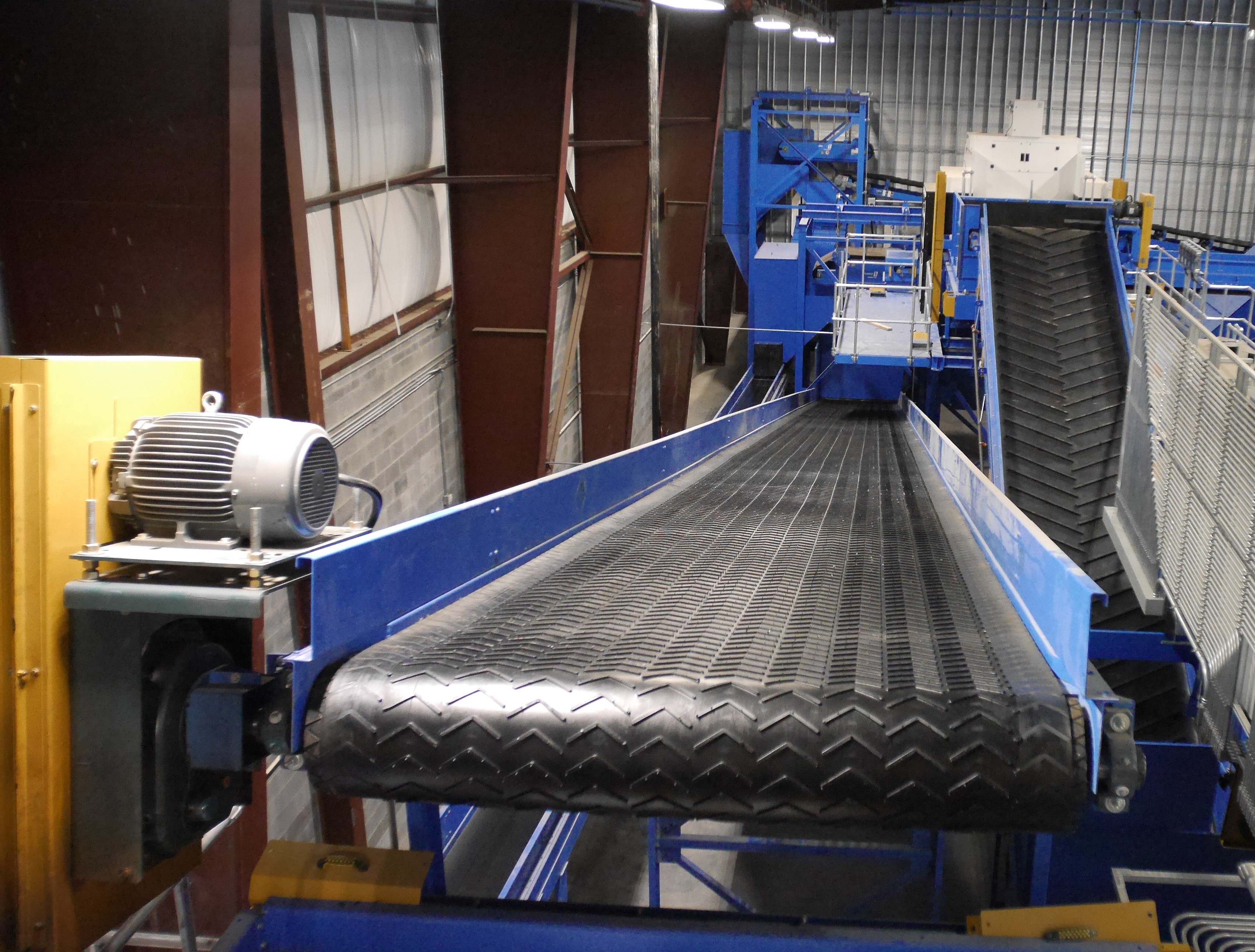

Idler Roller

Critical component ensuring smooth belt tracking and reduced friction (Live Tooling Precision).

Roller Diameter:

4–8 in

Dynamic Load:

Up to 2,000 lbs

Sealing:

Triple Labyrinth Seals

Primary Use:

C&D, MSW, SS Conveyors

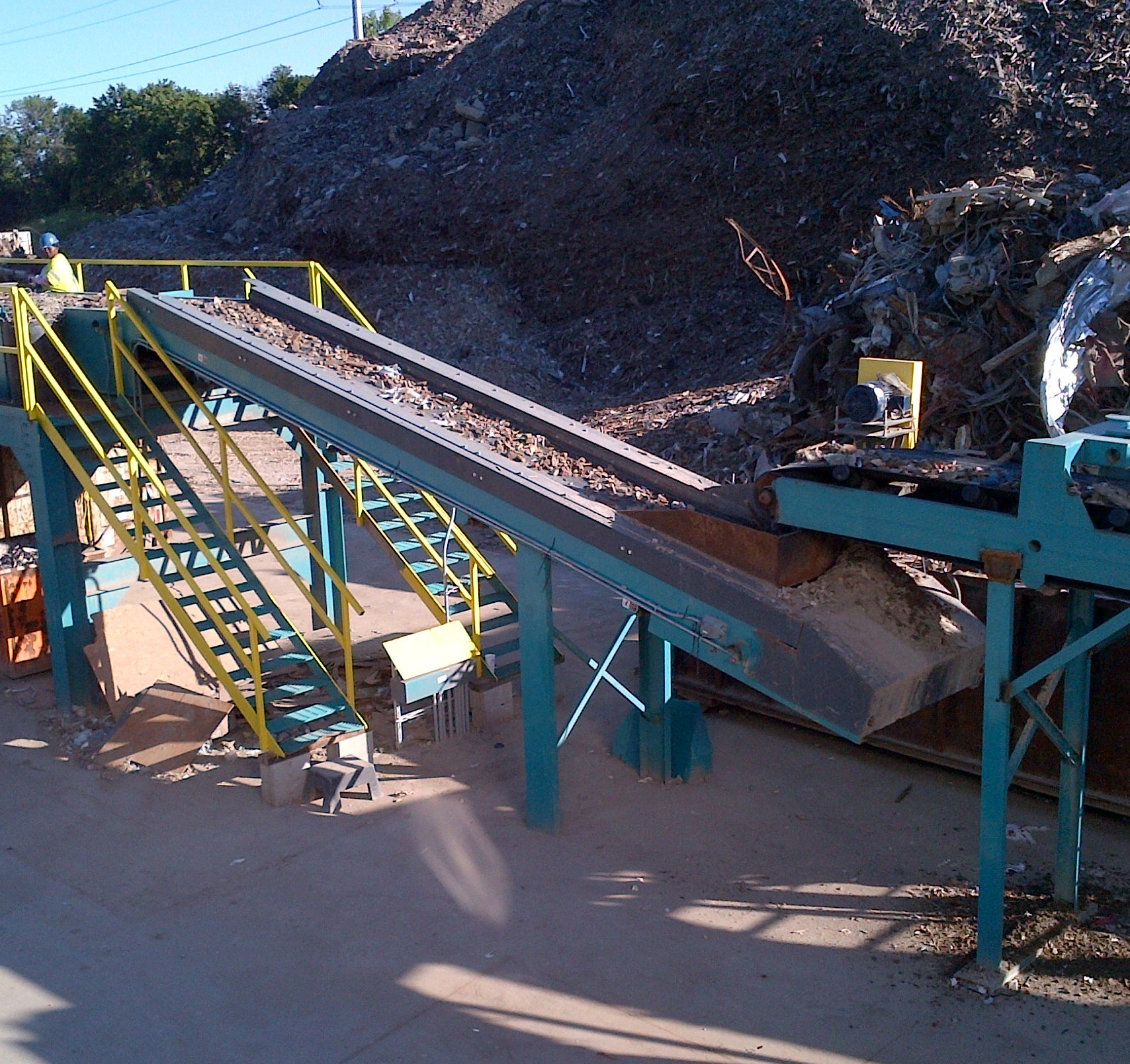

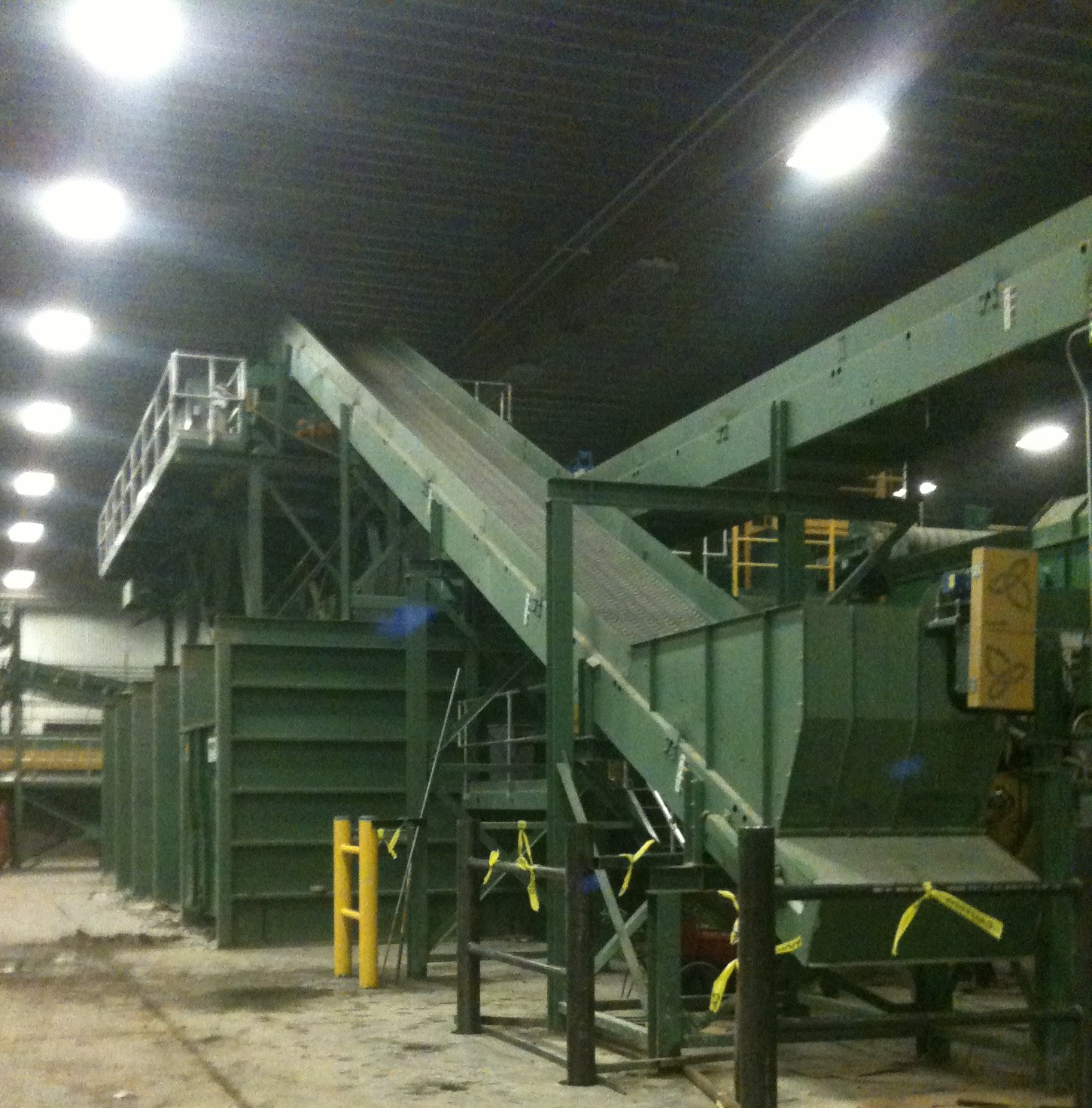

Stacking Conveyor

Used for building large stockpiles of recovered material (wood, aggregates) with automated control.

Mounting:

Fixed, Mobile, or Radial

Reach:

Up to 100 ft

Folding:

Hydraulic (Optional)

Primary Use:

Yard Management, Aggregates

Integrate High-Purity Sorting and Volume Reduction.

Our handling systems are built to integrate seamlessly with Eagle Vizion optical sorters and RagnarTech grinders for guaranteed TPH performance.

See Our Integrated Tech Solutions →

Product Catalogue: Handling, Screening, and Conveying Systems

In-house BLM LT14 laser tube cutting delivers precision-engineered profiles, optimized wall thickness, and unmatched durability under heavy impact and abrasive loads.
